Single Compression Type Cable Gland
Single Compression Type Cable Gland
Technical Data
| SIZE | 3/8”- 10 MM To 4”-100 MM |
| ENTRY THREAD | ET |
| ALTERNATE THREAD | METRIC, NPT, PG, METRIC, BSP |
| GLAND MATERIAL | BRASS (IS-319) |
| ALTERNATE MATERIAL | ALUMINIUM, S.S, M.S |
| OPERATING TEMPERATURE | -30 C TO +100 C |
| FINISH | NICKEL PLATED |
| ALTERNATE FINISH | TIN , CHROME |
| SEAL MATERIAL | NATURAL / NITRILE |
| ACCESSORIES | SHROUD, EARTH TAG (SUPPLIED SEPARATELY UPON REQUEST) |
| GLAND STANDARD | IS-12943 |
| INGRESS PROTECTION | IP 55 |
|

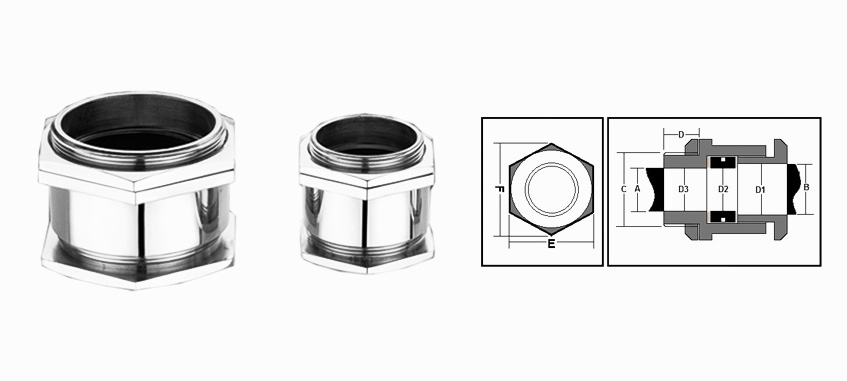

No.
|
SIZE
|
A/F
|
D1
|
D2
|
D3
|
C
(THREAD) |
D
(THREAD LENGTH) | CABLE DIMENSION
| |
|---|---|---|---|---|---|---|---|---|---|
A
UNDER ARMOUR DIA | B OVERALL DIA | ||||||||
1 |
3/8”-10mm |
18.00 |
12.70 |
10.40 |
12.70 |
5/8" ET |
6.50 |
8.00 |
10.00 |
2 |
1/2”- 12mm |
20.50 |
15.40 |
12.45 |
12.70 |
5/8" ET |
7.00 |
10.0 |
14.00 |
3 |
5/8”-16mm |
20.50 |
15.40 |
12.20 |
15.50 |
3/4" ET |
7.00 |
10.0 |
14.00 |
4 |
3/4"-19mm |
21.50 |
17.80 |
14.65 |
15.50 |
3/4" ET |
7.00 |
13.0 |
16.50 |
5 |
7/8”-22mm |
24.50 |
20.30 |
16.20 |
15.50 |
3/4" ET |
7.50 |
15.0 |
19.00 |
6 |
1”-25mm |
28.50 |
23.50 |
19.00 |
21.60 |
1" ET |
7.50 |
18.0 |
22.00 |
7 |
1.1/8”-28mm |
32.80 |
28.00 |
24.00 |
24.90 |
1.1/8" ET |
8.80 |
22.0 |
26.00 |
8 |
1.1/4”-32mm |
36.00 |
31.00 |
27.50 |
27.70 |
1.1/4" ET |
8.90 |
26.0 |
30.00 |
9 |
1.3/8”-35mm |
40.60 |
35.50 |
30.00 |
29.50 |
1.3/8" ET |
9.50 |
29.0 |
34.00 |
10 |
1.1/2”-38mm |
44.20 |
38.90 |
33.00 |
33.60 |
1.1/2" ET |
9.50 |
32.0 |
37.00 |
11 |
1.3/4”-45mm |
50.00 |
44.60 |
39.00 |
40.10 |
1.3/4" ET |
10.00 |
38.0 |
43.00 |
12 |
2”-50mm |
58.00 |
51.80 |
46.75 |
45.20 |
2" ET |
10.80 |
45.0 |
50.00 |
13 |
2.1/4”-57mm |
63.50 |
58.20 |
49.80 |
52.00 |
2.1/4" ET |
10.80 |
48.0 |
56.00 |
14 |
2.1/2”-63mm |
69.00 |
62.70 |
55.75 |
58.40 |
2.1/2" ET |
12.00 |
54.0 |
61.00 |
15 |
2.3/4”-70mm |
76.00 |
69.20 |
61.00 |
65.10 |
2.3/4" ET |
12.00 |
60.0 |
67.00 |
16 |
3”-75mm |
82.50 |
75.40 |
65.50 |
71.00 |
3" ET |
13.50 |
64.0 |
73.00 |
17 |
3.1/4”-82mm |
89.00 |
82.00 |
74.00 |
76.20 |
3.1/4" ET |
13.50 |
72.0 |
80.00 |
18 |
3.1/2”-88mm |
95.00 |
85.00 |
78.00 |
83.00 |
3.1/2” ET |
13.50 |
76.0 |
82.00 |
19 |
4”-100mm |
108.00 |
100.00 |
90.00 |
92.00 |
4” ET |
14.00 |
88.0 |
98.00 |
