Double Compression Type Cable Gland
Double Compression Type Cable Gland

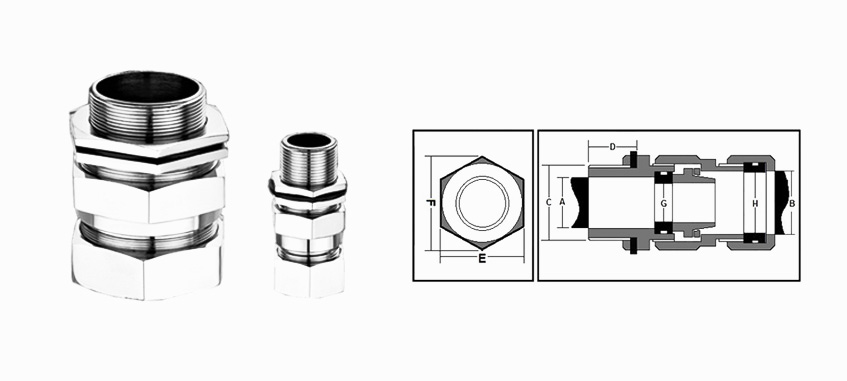

Technical Data
| SIZE | RPDP 01SSA TO RPDP 016 |
| ENTRY THREAD | BSC ET ,ALTERNATE THREAD : NPT, PG, METRIC, BSP |
| ENTRY THREAD RANGE | 1/2" TO 4.5 “ OR M12 TO M110 |
| GLAND MATERIAL | BRASS (IS-319) |
| ALTERNATE MATERIAL | ALUMINIUM, S.S, M.S |
| OPERATING TEMPERATURE | -30 C TO +100 C |
| FINISH | NICKEL PLATED, TIN, CHROME |
| SEAL MATERIAL | NATURAL / NITRILE |
| SEAL SHORE HARDNESS | 50 - 60 |
| ACCESSORIES | SHROUD, EARTH TAG, STOPPER, REDUCER, ADAPTORS (SUPPLIED SEPARATELY UPON REQUEST) |
| GLAND STANDARD | BS 6121, IS/IEC 60079-0:2011, IS/IEC 60079-1:2007 (Reaffirmed : 2012) |
| INGRESS PROTECTION | IP 66 AS PER IS/IEC 60529:2001 (Reaffirmed 2014) |
| APPROVAL | SECURE RPDP SERIES CABLE GLANDS ARE APPROVED BY CSIR-CENTRAL INSTITUTE OF MINING AND FUEL RESEARCH –DHANBAD |
No. |
SIZE
RPDP SERIES |
H |
G |
E |
E |
C |
D |
CABLE DIMENSIONS |
||
|---|---|---|---|---|---|---|---|---|---|---|
(THREAD) |
||||||||||
(A/F) |
(A/C) |
ET |
MM |
(THREAD LENGTH) |
A
UNDER
ARMOUR DIA |
B
OVER
ALL DIA |
||||
1 |
RPDP 01SSA |
12.00 |
8.50 |
19.50 |
22.50 |
1/2"ET |
M12 |
15 |
8.00 |
10.0 |
2 |
RPDP 01SS |
14.00 |
9.00 |
22.00 |
25.00 |
3/4"ET |
M20 |
15 |
8.00 |
12.5 |
3 |
RPDP 01S |
17.50 |
11.00 |
25.00 |
29.00 |
3/4"ET |
M20 |
15 |
10.00 |
16.5 |
4 |
RPDP 01 |
19.50 |
14.50 |
27.50 |
32.00 |
3/4"ET |
M20 |
15 |
12.50 |
18.5 |
5 |
RPDP 01A |
19.50 |
14.50 |
27.50 |
32.00 |
1"ET |
M25 |
15 |
12.50 |
18.5 |
6 |
RPDP 02 |
21.00 |
16.00 |
29.00 |
34.00 |
1"ET |
M25 |
15 |
14.00 |
20.0 |
7 |
RPDP 02A |
21.00 |
16.00 |
29.00 |
34.00 |
3/4"ET |
M20 |
15 |
14.00 |
20.0 |
8 |
RPDP 03 |
23.50 |
18.00 |
31.00 |
36.00 |
1"ET |
M25 |
15 |
16.00 |
23.0 |
9 |
RPDP 04 |
27.50 |
21.00 |
37.00 |
43.00 |
1"ET |
M25 |
15 |
19.00 |
26.0 |
10 |
RPDP 04A |
27.50 |
21.00 |
37.00 |
43.00 |
1.1/4"ET |
M32 |
15 |
19.00 |
26.0 |
11 |
RPDP 05 |
31.50 |
25.00 |
41.00 |
47.00 |
1.1/4"ET |
M32 |
15 |
23.00 |
30.0 |
12 |
RPDP 05A |
31.50 |
25.00 |
41.00 |
47.00 |
1.1/2"ET |
M40 |
15 |
23.00 |
30.0 |
13 |
RPDP 06 |
34.00 |
28.00 |
46.00 |
53.00 |
1.1/2"ET |
M40 |
15 |
26.00 |
33.0 |
14 |
RPDP 06A |
34.00 |
28.00 |
46.00 |
53.00 |
1.1/4"ET |
M32 |
15 |
26.00 |
33.0 |
15 |
RPDP 07 |
38.00 |
31.00 |
50.50 |
58.00 |
1.1/2"ET |
M40 |
15 |
29.00 |
37.0 |
16 |
RPDP 08 |
42.00 |
36.00 |
56.00 |
64.00 |
2"ET |
M50 |
15 |
34.00 |
41.0 |
17 |
RPDP 09 |
47.00 |
41.00 |
59.00 |
67.00 |
2"ET |
M50 |
15 |
39.00 |
46.0 |
18 |
RPDP 010 |
53.00 |
45.00 |
66.00 |
76.00 |
2"ET |
M50 |
20 |
43.00 |
52.0 |
19 |
RPDP 010A |
53.00 |
45.00 |
66.00 |
76.00 |
2.1/2"ET |
M63 |
20 |
43.00 |
52.0 |
20 |
RPDP 011S |
57.50 |
51.00 |
74.00 |
85.00 |
2.1/2"ET |
M63 |
20 |
49.00 |
56.0 |
21 |
RPDP 011 |
61.50 |
55.00 |
79.00 |
92.00 |
2.1/2"ET |
M63 |
20 |
53.00 |
60.0 |
22 |
RPDP 012 |
68.00 |
62.00 |
84.00 |
97.00 |
3"ET |
M75 |
20 |
60.00 |
66.0 |
23 |
RPDP 013A |
74.00 |
67.00 |
90.00 |
103.00 |
3"ET |
M75 |
20 |
65.00 |
72.0 |
24 |
RPDP 013 |
79.00 |
73.00 |
99.00 |
113.00 |
3.1/4"ET |
M82 |
20 |
71.00 |
78.0 |
25 |
RPDP 014 |
86.00 |
80.00 |
105.00 |
122.00 |
3.1/4"ET |
M90 |
20 |
78.00 |
84.0 |
26 |
RPDP 015 |
96.00 |
89.00 |
116.00 |
134.00 |
4"ET |
M100 |
20 |
87.00 |
94.0 |
27 |
RPDP 016 |
106.00 |
103.00 |
130.00 |
150.00 |
4.1/2"ET |
M110 |
25 |
100.00 |
104.0 |
